A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the steel or stainless-steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available.
Product Benefits:

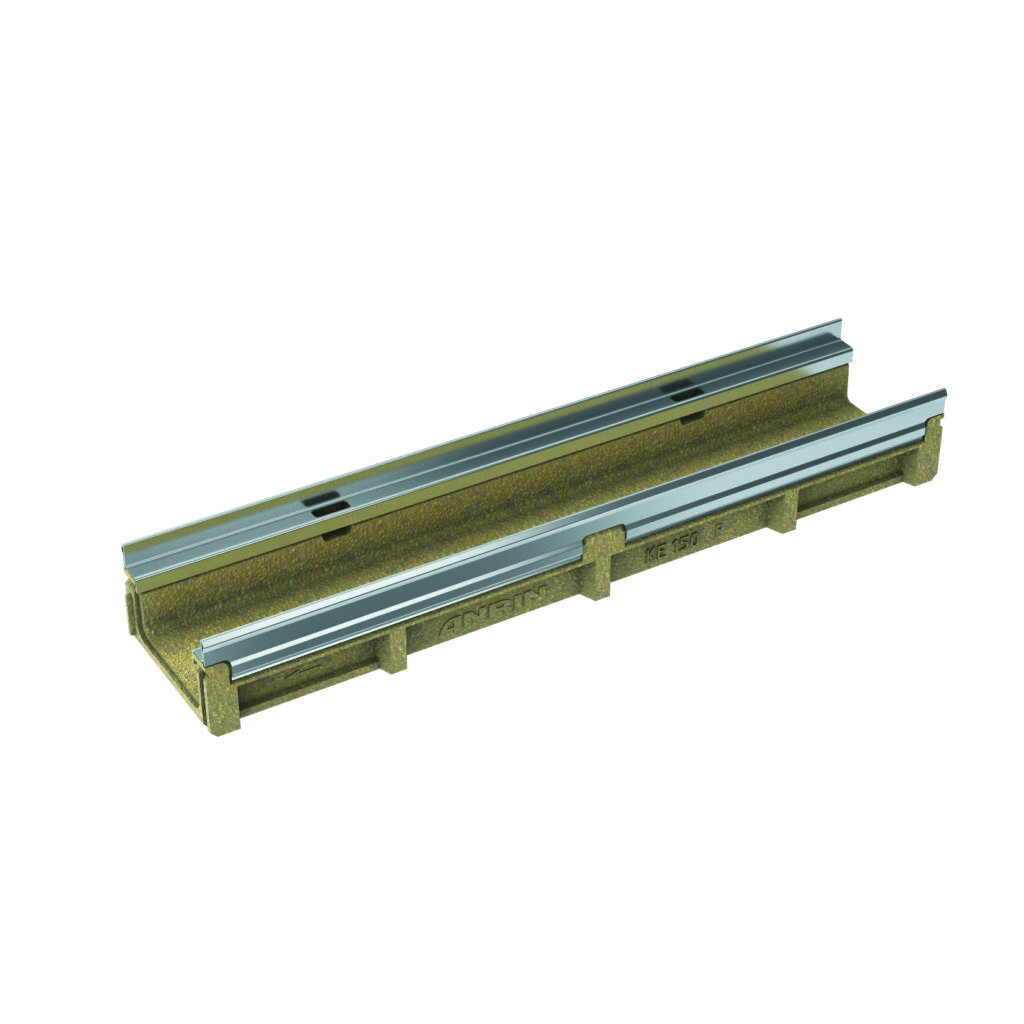

KE-150-150 Reinforce Edge Channel Product Specifications
Material: Polymer Concreate
Length: 1000 mm
Width: 214 mm
Height: 130 mm
Weight: 44.31 lbs
Nominal Width: 130mm [5.12 in]
Joint Formation: UNILINK®– Joint
Clasp: SnapLock Fastening
Load Capacity: A15 to E600
Grating: Galvanized Steel, 304 Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
