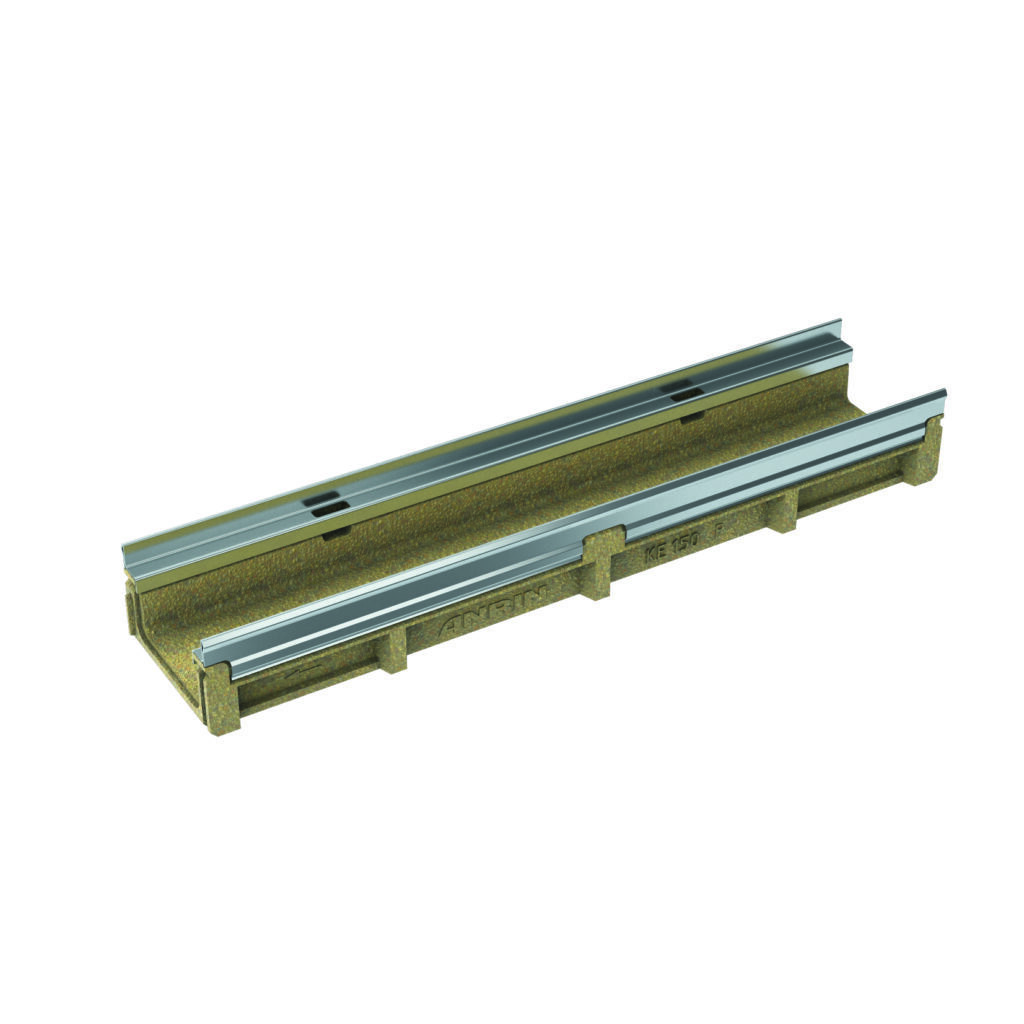

ANRIN KE-150-150S Reinforced Edge Channel with Stainless-Steel Edge Rail

Anrin

A technically advanced channel system with many details for efficient line drainage, both in private residential buildings and in commercial and urban development. The name is derived from the steel or stainless-steel frames integrated into the channel profile. They serve to protect the channel flank from damage and wear and tear and to stabilize the cover gratings. Particularly high loads in traffic areas, such as those found in freight forwarding yards and on public roads, are accommodated by this dimensionally stable and weather-resistant frame.  For variable laying of the channel runs, different channel types can be combined within the system.

Product Benefits:

  • 6 mm Thick Steel Profile Frame
  • Corrosion Resistant and Easy to Maintain Closure Technology
  • UNILINK Joint on Both Sides for Installation Regardless of Direction
01114000_01414000

KE-150-150S Reinforce Edge Channel Product Specifications

Material: Polymer Concreate

Length: 1000 mm

Width: 214 mm

Height: 130 mm

Weight: 20.1 kg

Nominal Width: 150mm [5.91 in]

Load Capacity: A15 to E600

Slope Type: Stepped Invert

Joint Formation: UNILINK®– Joint

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
