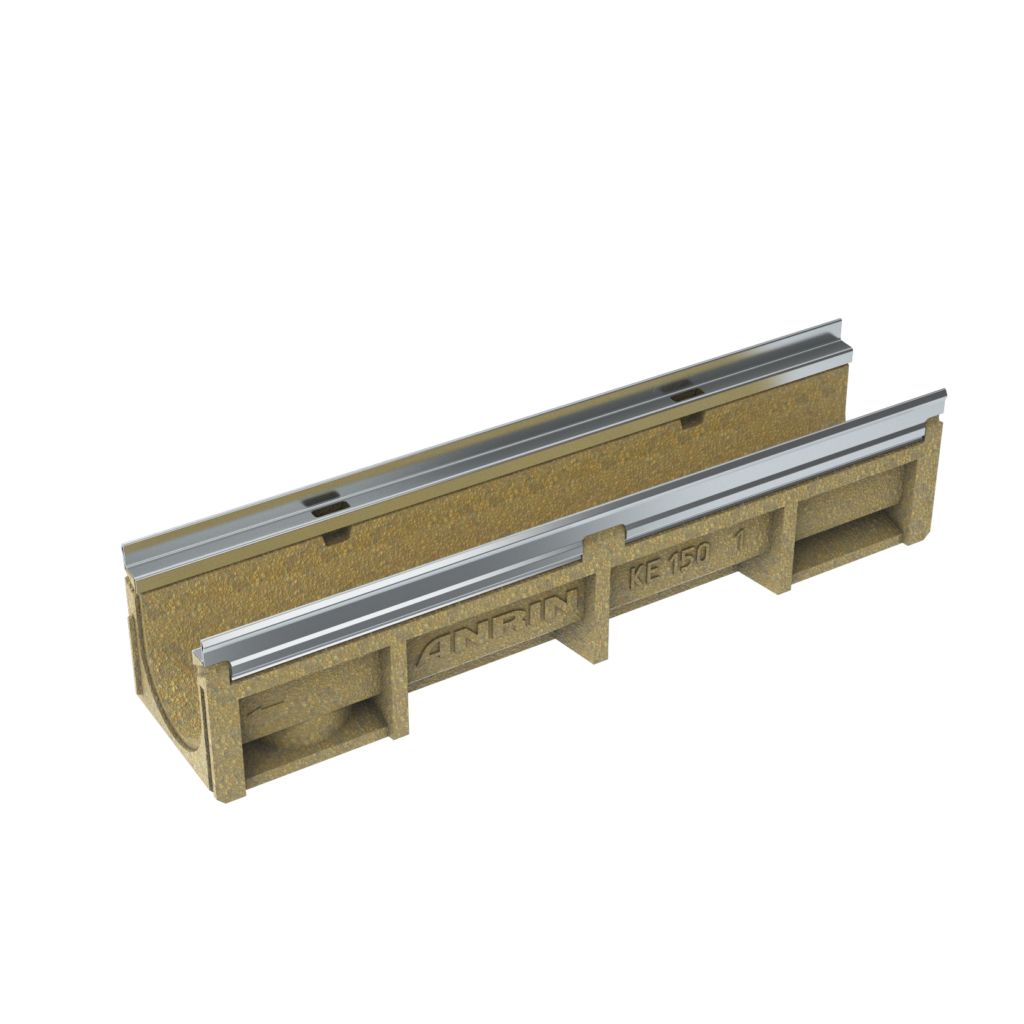

ANRIN KE-150 Reinforced Edge Channel with Galvanized Steel Edge Rail

Material: Polymer Concreate

Length: 500 mm / 1000 mm

Width: 214 mm

Height: 220-320 mm (see data sheet)

Weight: 39.46 – 84.22 lbs

Nominal Width: 150 mm [5.91 inch]

Load Capacity: C250 to E600

Slope Type: Slope Invert 0.5%, Stepped Invert, Constant Invert

Joint Formation: UNILINK^®– Joint

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
