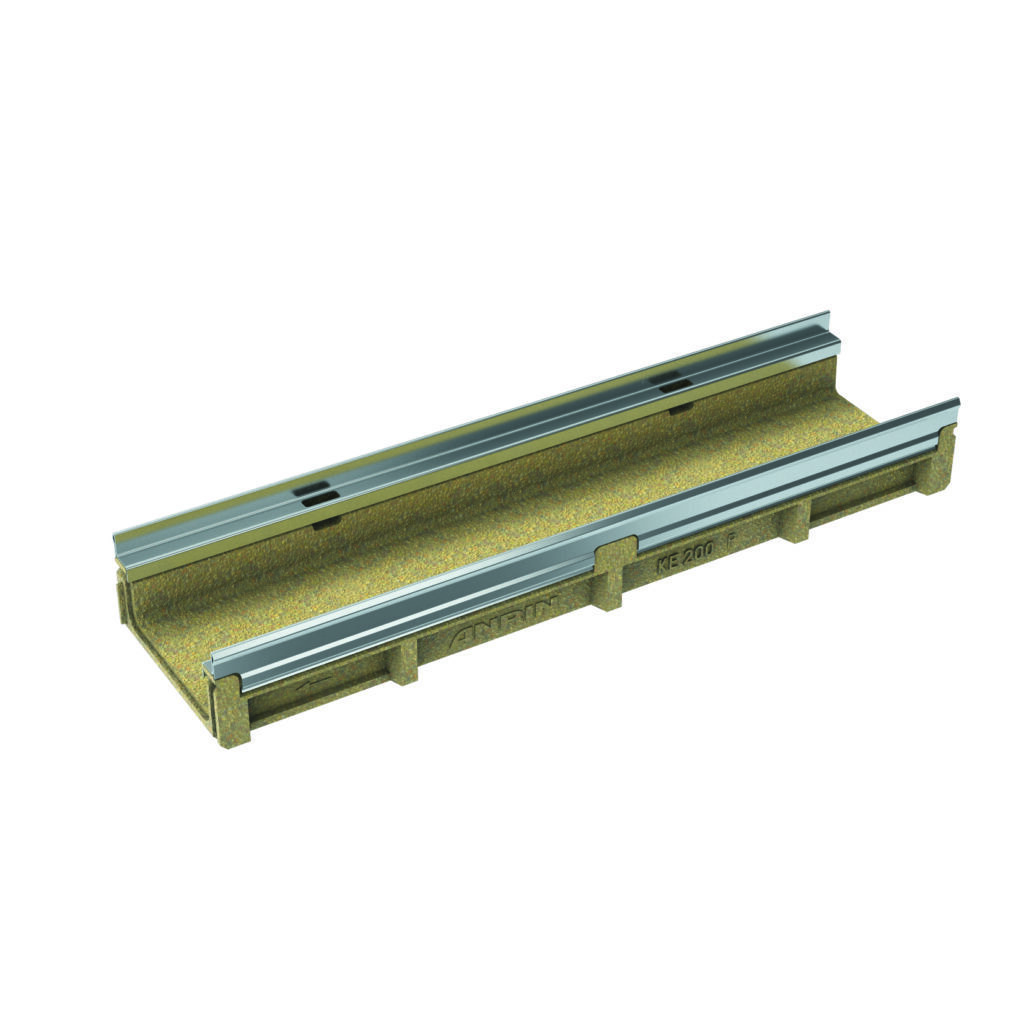

ANRIN KE-200-200S Reinforced Edge Channel with Stainless-Steel Rail


A technically advanced channel system with many details for efficient line drainage, both in private residential buildings and in commercial and urban development. The name is derived from the steel or stainless-steel frames integrated into the channel profile. They serve to protect the channel flank from damage and wear and tear and to stabilize the cover gratings. Particularly high loads in traffic areas, such as those found in freight forwarding yards and on public roads, are accommodated by this dimensionally stable and weather-resistant frame. For variable laying of the channel runs, different channel types can be combined within the system. For example, channels with preformed shapes for T-connections, corner joints and cross joints or channels with a cast-in vertical pipe socket for connection to a drainage system are available.

Product Benefits:

  • 6 mm Thick Steel Profile Frame
  • Corrosion Resistant and Easy to Maintain Closure Technology
  • UNILINK Joint on Both Sides for Installation Regardless of Direction

KE-200-200S Reinforce Edge Channel Product Specifications

Material: Polymer Concreate

Edge Rail: Stainless-Steel

Length: 1000 mm

Width: 264 mm

Height: 130 mm

Weight: 22.2 kg – 42.4 kg

Nominal Width: 200 mm

Load Capacity: A15 to E600

Slope Type: Stepped Invert

Joint Formation: UNILINK®– Joint

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
