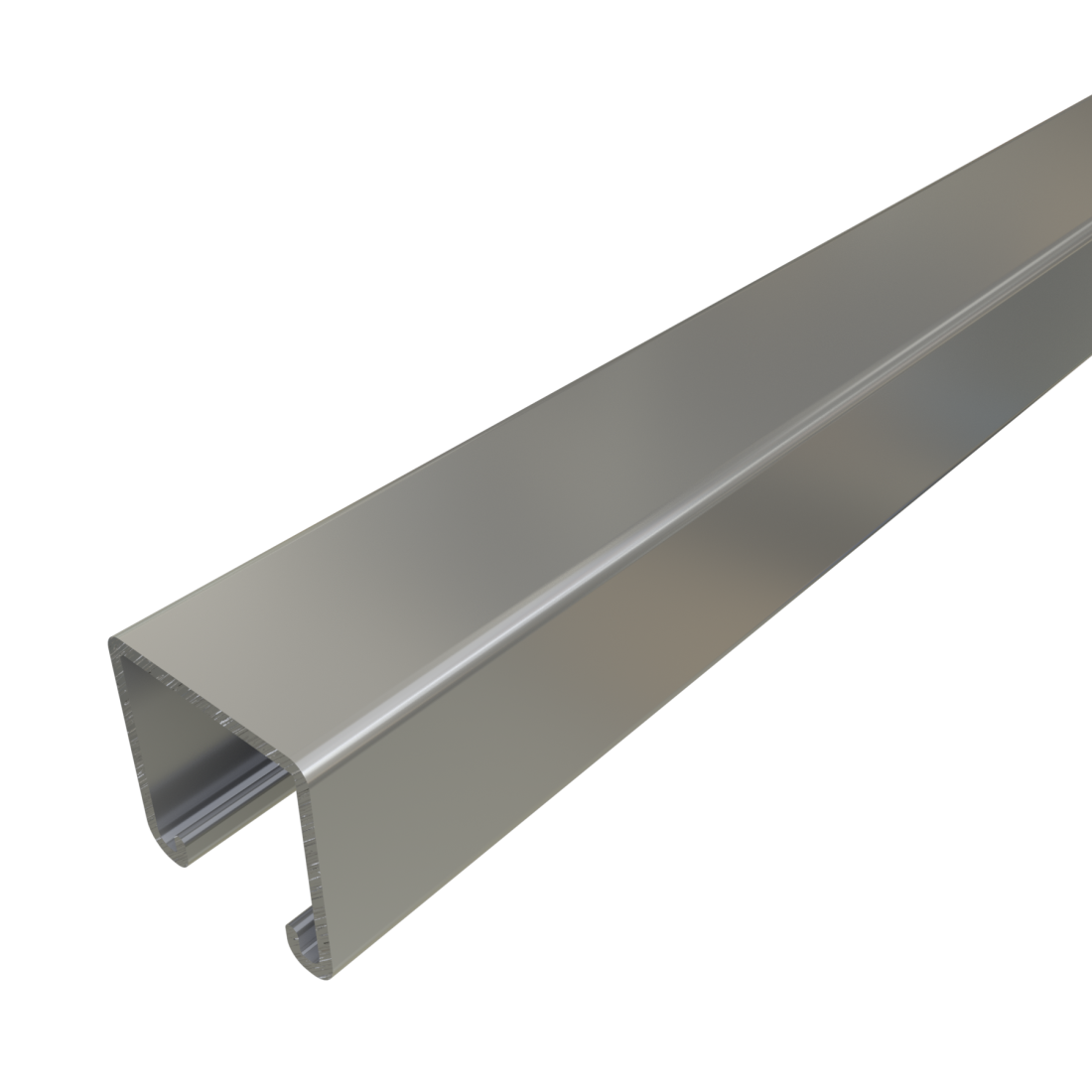

P1000 – 1-5/8″ x 1-5/8″, 12 Gauge Channel, Solid

The Unistrut P1000 is a highly versatile and durable channel framing system designed to provide reliable support and flexibility in various applications. Made from high-quality, corrosion-resistant steel, this channel framing system offers exceptional strength and stability. It features a unique design with precision-holed slots along the length, allowing for easy adjustment and assembly of fittings, brackets, and other accessories. Whether used for mounting electrical, mechanical, or plumbing components, the Unistrut P1000 offers a reliable and efficient solution. With its easy-to-install design and compatibility with a wide range of accessories, this channel framing system is ideal for construction, industrial, and commercial projects. Experience the strength and adaptability of the Unistrut P1000, providing a solid foundation for your project needs.

sgahmssx8y1qxrrrqqve

Description

Features:

  • OPM pre-approved for seismic applications
  • UL and CSA listed for use as a Strut-Type Channel Raceway
  • Punched holes are also available for ease of installation
  • Available in Pre-Galvanized (PG), Atkore Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Gold (ZD), Stainless Steel (SS or ST) and
  • Aluminum (EA)
  • Made in the USA

Standard Lengths:

  • 10 feet: 10′ or 10’ 1/8” (3.05m) ± 1/8″ (3 mm)
  • 20 feet: 20′ or 20’ 3/8” (6.11m) ± 1/8″ (3 mm)

Special Lengths:

  • Available with a tolerance of ±1/8″ (3 mm). Request quote.

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for “UNISTRUT” on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.

Materials & Finishes
Materials & Finishes – Standard:

  • Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF): Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR): Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL): Conforms to ASTM A1011 SS GR 33

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS): ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST): ASTM A240, Type 316 *
  • Aluminum (EA): ASTM B221, Type 6063-T6 (Extruded) *
  • * These materials have different physical properties and performance characteristics. Please contact us for design support.
