Features:
- Used for anchorage on ceilings, floors or walls. Ideal for applications with cracked concrete concerns. Avoids the creation of Silica Dust during installation (see OSHA 29 CFR §1926.1153 and 29 CFR §1910.1053). OPA approved for seismic bracing application

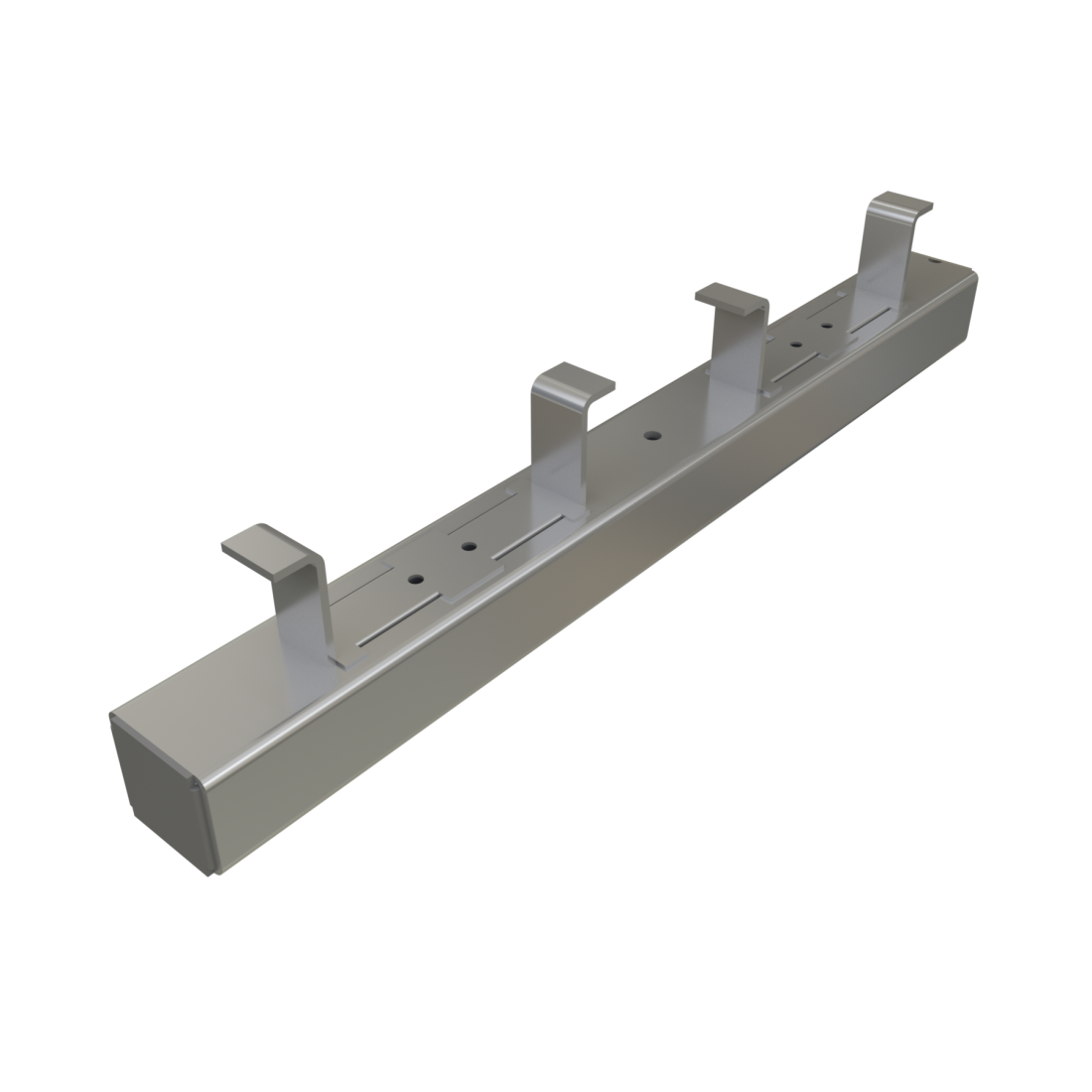

- Channel dimensions are 1 5/8″ wide x 1 3/8″ deep x 12 ga. thick. Embedment tabs are spaced at 8″ O.C. with an embedment depth of 2-7/8″. May be supplied with Back Plates, End Caps and a Closure Strip to prevent concrete seepage into the channel.
- Up to 2,000 lbs capacity
- Our P3200 Series is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), and Stainless Steel (SS).
- Options: “NC” Suffix – No Closure Strip, with End Caps & Back Plates. “WC” Suffix – With Closure Strip, End Caps & Back Plates. “X” Suffix – No Closure Strip, no End Caps, with Back Plates
- Includes closure and end caps unless otherwise requested.
- P3280 end cap used with distance to first anchor is up to 2″ (51 mm).
- P3704 end cap is used when end distance to first anchor is over 2″ (51 mm).
- Nail or anchor inserts to forms every 16″ (406.4 mm) to 24″ (609.6 mm).
- Anchors are 8″ (203.3 mm) on center.
Specifications:
- Includes closure and end caps unless otherwise requested.
- P3280 end cap used with distance to first anchor is up to 2″ (51 mm).
- P3704 end cap is used when end distance to first anchor is over 2″ (51 mm).
- Nail or anchor inserts to forms every 16″ (406.4 mm) to 24″ (609.6 mm).
- Anchors are 8″ (203.3 mm) on center
