ULMA MULTIV+100 Reinforced Edge Channel with Stainless-Steel Edge Rail

Anrin

ULMA Linear Drainage Channel, type MULTIV+ R100GX; External width 136 mm, Internal width 100 mm, with overall heights between 80 and 300 mm; suitable for cascade-type slopes to collect rainwater; sections 1 LM in length; optimized V-shape with self-cleaning effect; especially designed for channel runs with no longitudinal slope; galvanized steel or ductile iron edges (2) for lateral protection; Either Rapidlock® boltless system or screw-fastened. 8 locking points per linear meter.

Product Benefits:

  • Optimized V-Shape – Optimized for higher hydraulic efficiency
  • Rapidlock Fastening System – Fast, fully manual locking, and easy maintenance
  • Mechanical Stability with 8 Fastening Points – Higher stability and stress distribution
  • Vertical Outlets – All channels have outlets for easier installation

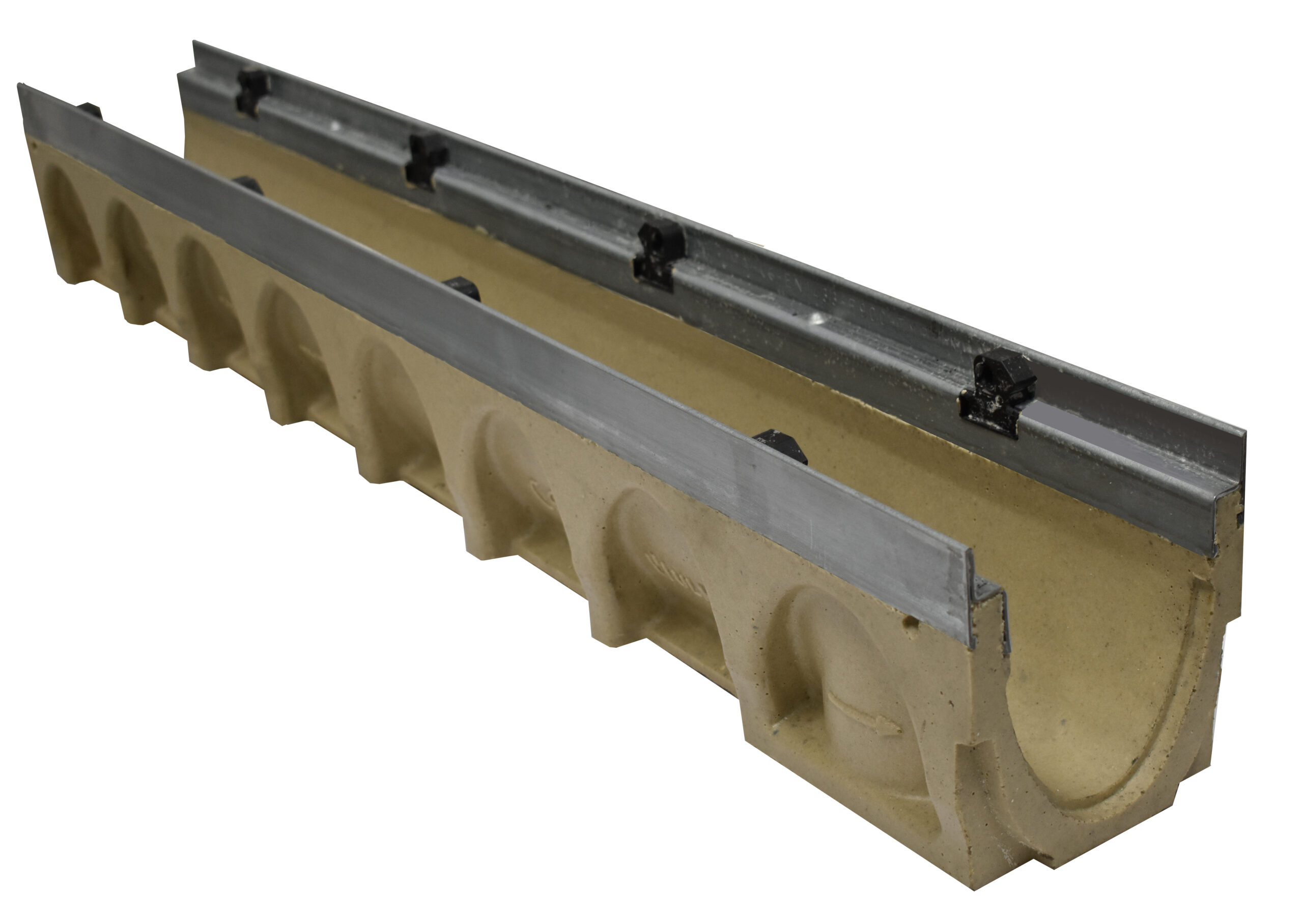

R100G10R

 MULTIV+100 Reinforced Edge Channel Product Specifications

Material: Polymer Concreate

Edge Rail: Stainless-Steel

Length: 1000 mm / 500 mm

Width: 136 mm

Height: 80 mm – 300 mm

Weight: 11.2 kg – 24.7kg

Nominal Width: 100 mm

Load Capacity: E600

Slope Type: Without Slope, Cascaded Slope, 0.5% Presloped, Mixed Slope

Joint Formation: Male & Female vertical and horizontal alignment

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
