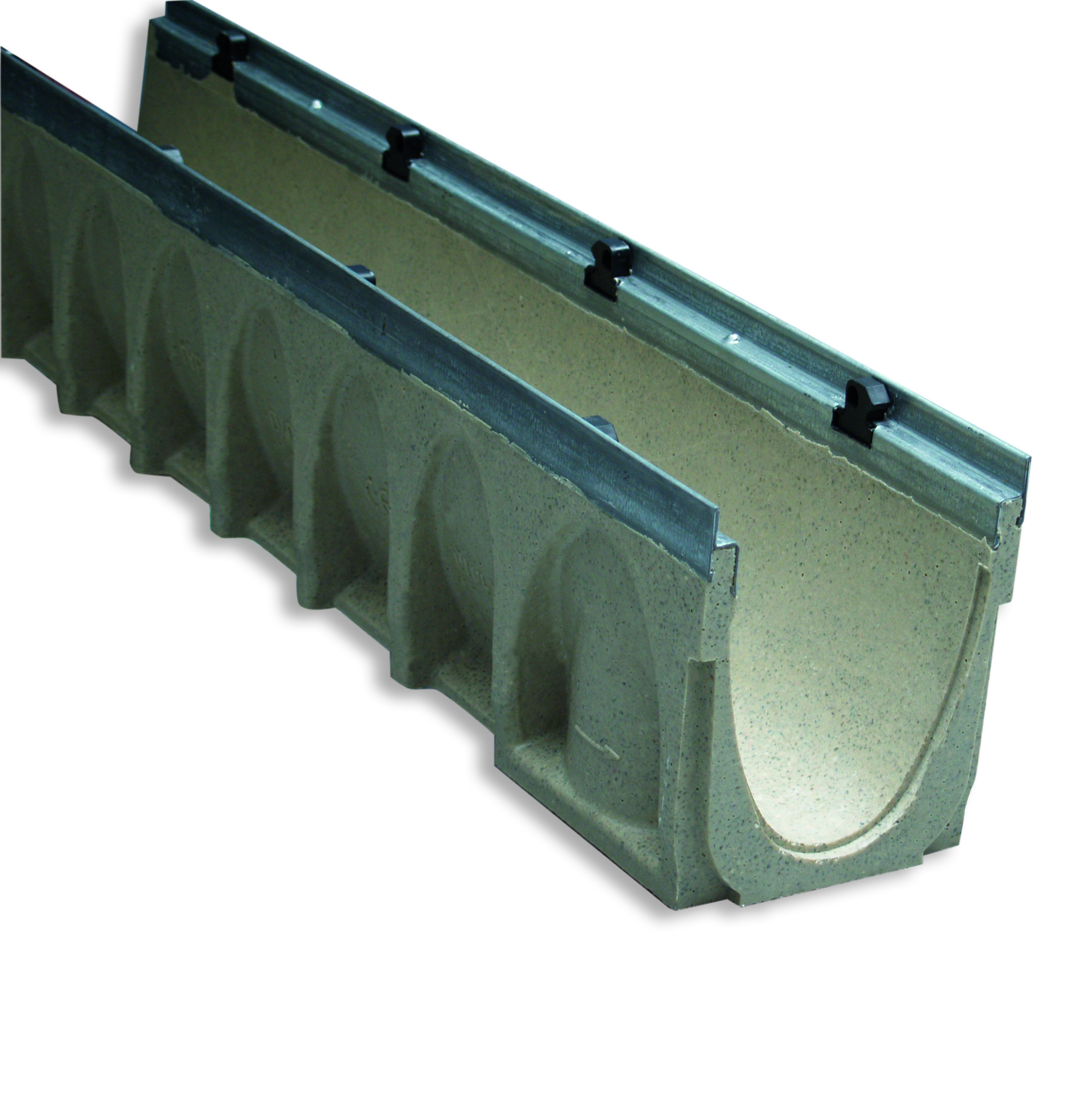

ULMA MULTIV+150 Reinforced Edge Channel with Galvanized Steel Edge Rail

Anrin

The ULMA MULTIV+150 Reinforced Edge Channel with Galvanized Steel Edge Rail is the ideal solution for efficient water drainage and edge protection. This high-quality channel system is designed to withstand heavy loads and provide exceptional durability.

Featuring a galvanized steel edge rail, this edge channel offers superior strength and resistance to corrosion, ensuring a long-lasting performance even in harsh environments. The reinforced design enhances stability, preventing deformations and promoting reliable water flow.

The MULTIV+150 Reinforced Edge Channel is easy to install, making it an excellent choice for various applications such as pedestrian areas, parking lots, driveways, and industrial settings. Its sleek yet robust profile ensures seamless integration into any landscape or infrastructure project.

With its excellent load carrying capacity and exceptional drainage capabilities, the ULMA MULTIV+150 Reinforced Edge Channel with Galvanized Steel Edge Rail offers a reliable and efficient solution for managing water runoff while providing reliable edge protection.

Product Benefits:

  • Optimized V-Shape – Optimized for higher hydraulic efficiency
  • Rapidlock Fastening System – Fast, fully manual locking, and easy maintenance
  • Mechanical Stability with 8 Fastening Points – Higher stability and stress distribution
  • Vertical Outlets – All channels have outlets for easier installation
OLYMPUS DIGITAL CAMERA

 MULTIV+150 Reinforced Edge Channel Product Specifications

Material: Polymer Concreate

Edge Rail: Galvanized Steel

Length: 1000 mm / 500 mm

Width: 186 mm

Height: 80 mm – 320 mm

Weight: 14.0 kg – 31.5kg

Nominal Width: 150 mm

Load Capacity: D600

Slope Type: Without Slope, Cascaded Slope, 0.5% Presloped, Mixed Slope

Joint Formation: Male & Female vertical and horizontal alignment

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
