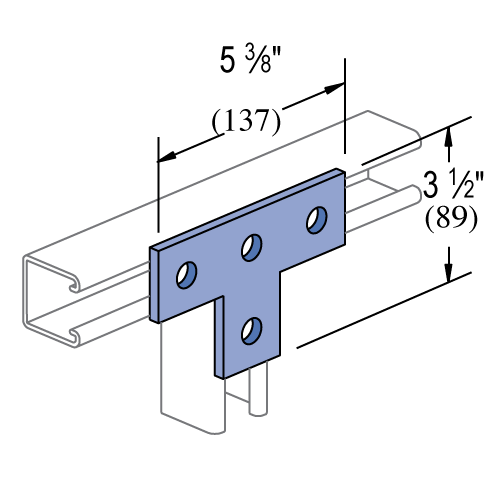

Unistrut – P1031 – 4 Hole, Flat Plate Fitting

atkore-unistrut

The Unistrut P1031 4 Hole Flat Plate Fitting is a versatile and reliable component for constructing sturdy framework systems. This flat plate fitting is designed with precision, ensuring secure connections and versatile configurations. With its four-hole design, it offers flexibility in attaching various accessories, fixtures, or other structural elements to your framework. Made from high-quality materials, it provides excellent corrosion resistance and long-lasting performance, ensuring your framework system remains strong and durable over time.

The P1031 Flat Plate Fitting is compatible with Unistrut channels, allowing for seamless integration into your existing framework.

Whether for electrical, mechanical, or construction applications, trust the Unistrut P1031 4 Hole Flat Plate Fitting to provide the strength and versatility you need for your framework projects.

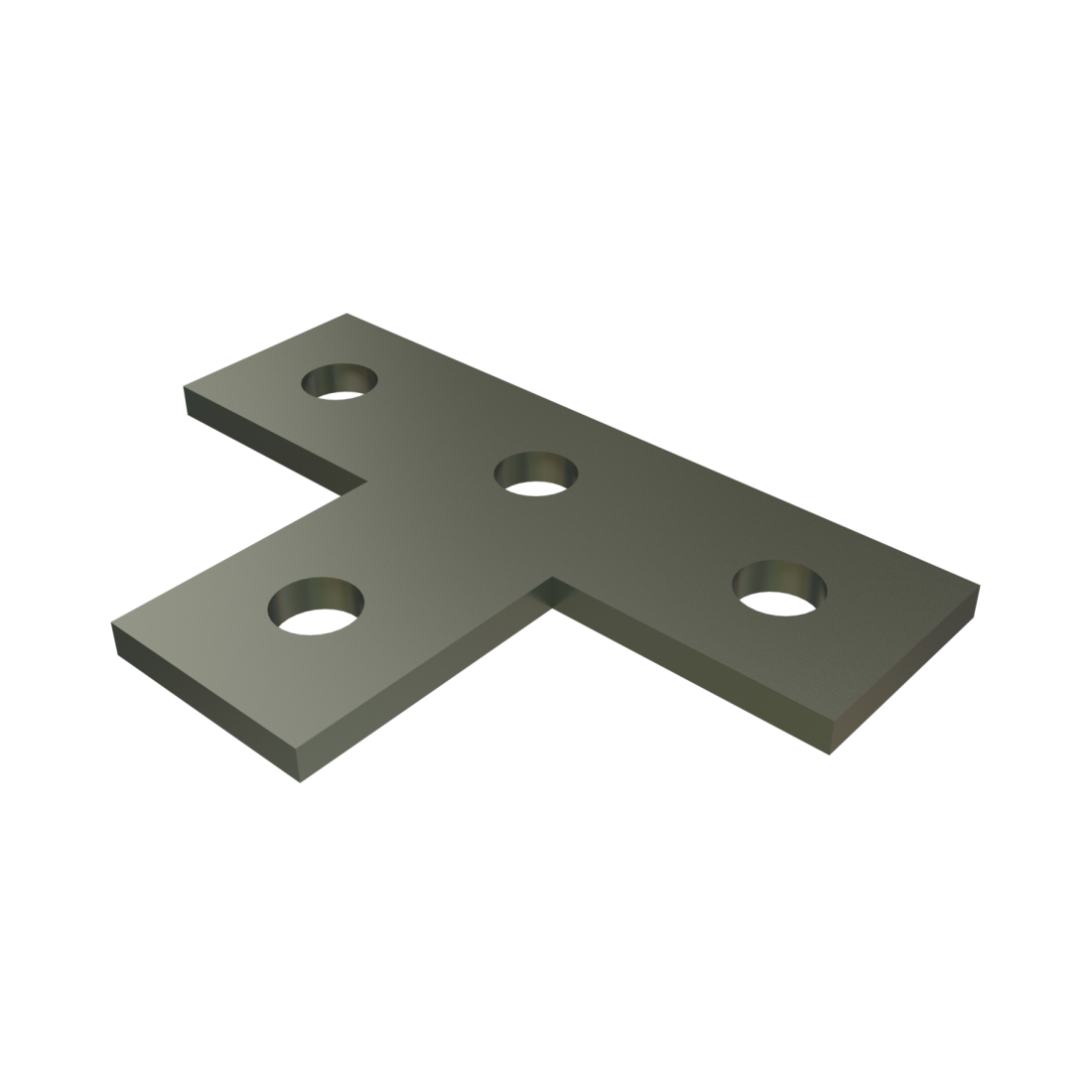

topwvseb8edvj6wtqrn8

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 1/2″ fasteners
  • Variety of material and finish options

Standard Dimensions (Unless Shown Otherwise on Drawing):

  • Hole Diameter:  9/16”  (14mm)
  • Hole Spacing (From End):  13/16”  (21mm)
  • Hole Spacing (On-Center):  1 7/8”  (48mm)
  • Width:  1 5/8”  (41mm)
  • Thickness:
  • 1/4”  (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
  • 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

  • When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.

Materials & Finishes

Materials & Finishes – Standard:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Plain (PL):  No finish

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS):  Conforms to ASTM A240 or A276, Type 304 *
  • Stainless Steel, Type 316 (ST):  Conforms to ASTM A240 or A276, Type 316 *
  • Aluminum (AL):  Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics.
