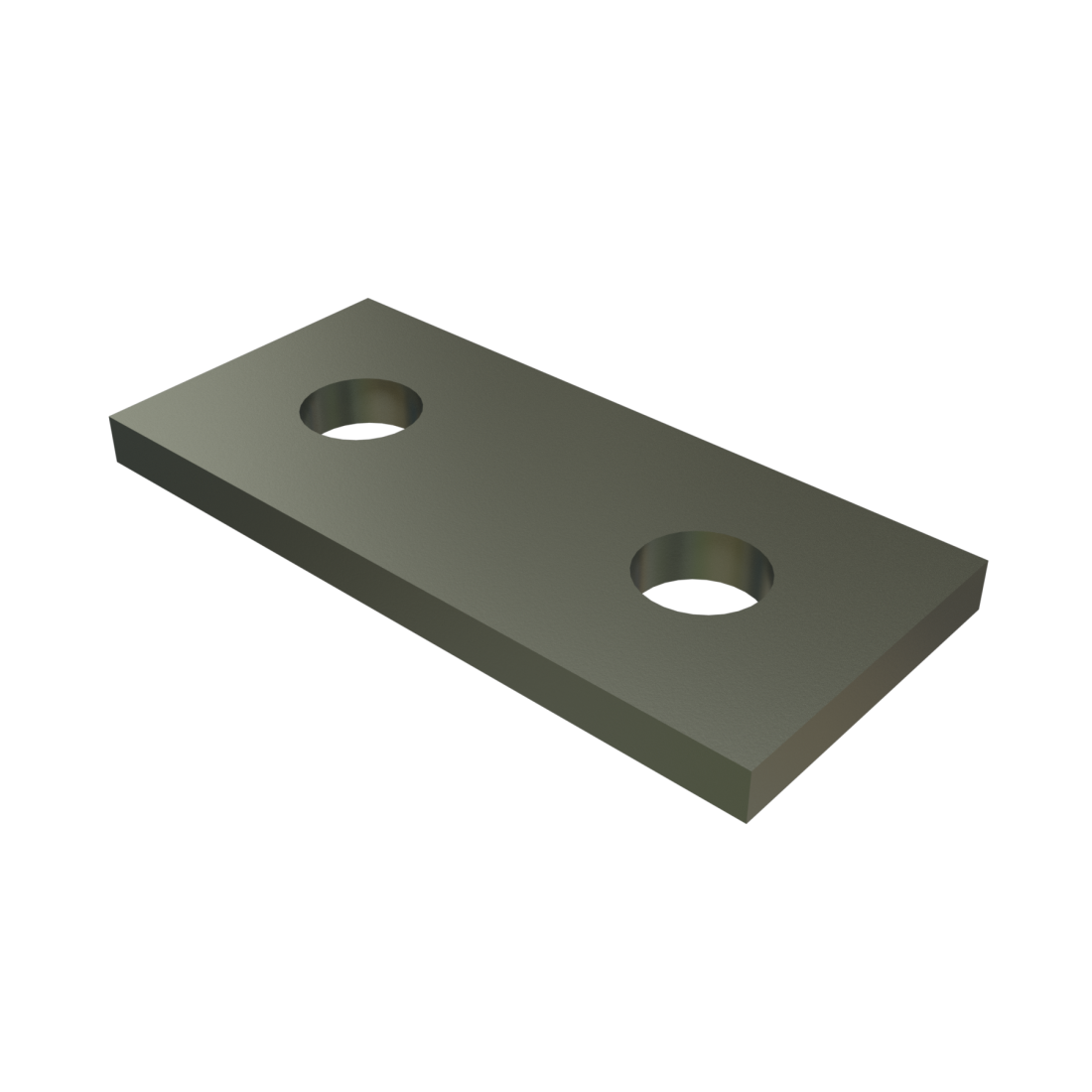

Unistrut – P1065 – 2 Hole, Flat Plate Fitting

The Unistrut P1065 is a versatile and reliable 2-hole flat plate fitting designed to provide strong and secure connections in a variety of applications. With its durable construction and high-quality materials, this fitting is built to last and withstand even the toughest conditions.

The P1065 is specifically designed for use with Unistrut channels, offering a quick and easy installation process. Whether you’re working on a construction project, industrial application, or even a DIY project, this flat plate fitting provides a strong connection point, allowing you to securely attach and support various fixtures, equipment, or structures.

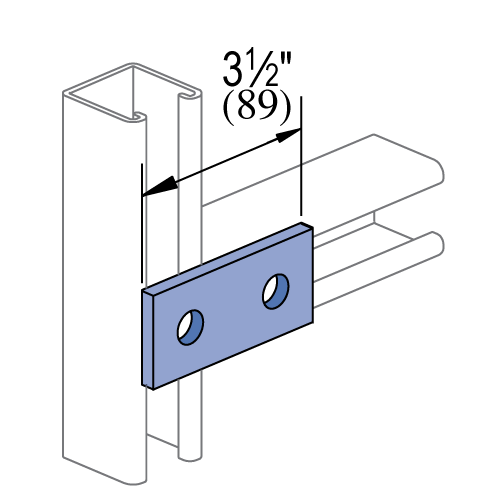

Featuring two holes, this fitting offers flexibility in terms of positioning and customization, making it suitable for a wide range of projects. It can be used for joining two Unistrut channels or for attaching other accessories, such as brackets, conduits, or pipes.

Thanks to its simple yet effective design, the Unistrut P1065 ensures stability and reliability when it comes to load-bearing capabilities. It is engineered to provide optimal support and strength, giving you peace of mind knowing that your project is securely fastened.

So whether you’re a professional contractor or a DIY enthusiast, the Unistrut P1065 2-hole flat plate fitting is an ideal choice. With its durability, ease of use, and versatility, it is a reliable component that will help you create sturdy and safe structures or installations.

g4yut68itbygdc0egrg3

Other Unistrut Items

Unistrut – J1205 thru J1280 – J-Hanger (1-5/8″ Series)

Unistrut – P1100 – 1-5/8″ x 1-5/8″, 14 Gauge, Solid

Unistrut – P1000T – 1-5/8″ x 1-5/8″, 12 Gauge; Slotted

Unistrut – P1000SL – 1-5/8″ x 1-5/8″, 12 Gauge; Long Slots

Unistrut – P1000KO – 1-5/8″ x 1-5/8″, 12 Gauge; Knock Outs

Unistrut – P1000HS – 1-5/8″ x 1-5/8″, 12 Gauge; Round Holes

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 1/2″ fasteners
  • Variety of material and finish options

General Specifications

Standard Dimensions (Unless Shown Otherwise on Drawing):

  • Hole Diameter:  9/16”  (14mm)
  • Hole Spacing (From End):  13/16”  (21mm)
  • Hole Spacing (On-Center):  1 7/8”  (48mm)
  • Width:  1 5/8”  (41mm)
  • Thickness:
  • 1/4”  (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
  • 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

  • When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.

Materials & Finishes

Materials & Finishes – Standard:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Plain (PL):  No finish

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS):  Conforms to ASTM A240 or A276, Type 304 *
  • Stainless Steel, Type 316 (ST):  Conforms to ASTM A240 or A276, Type 316 *
  • Aluminum (AL):  Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics.
