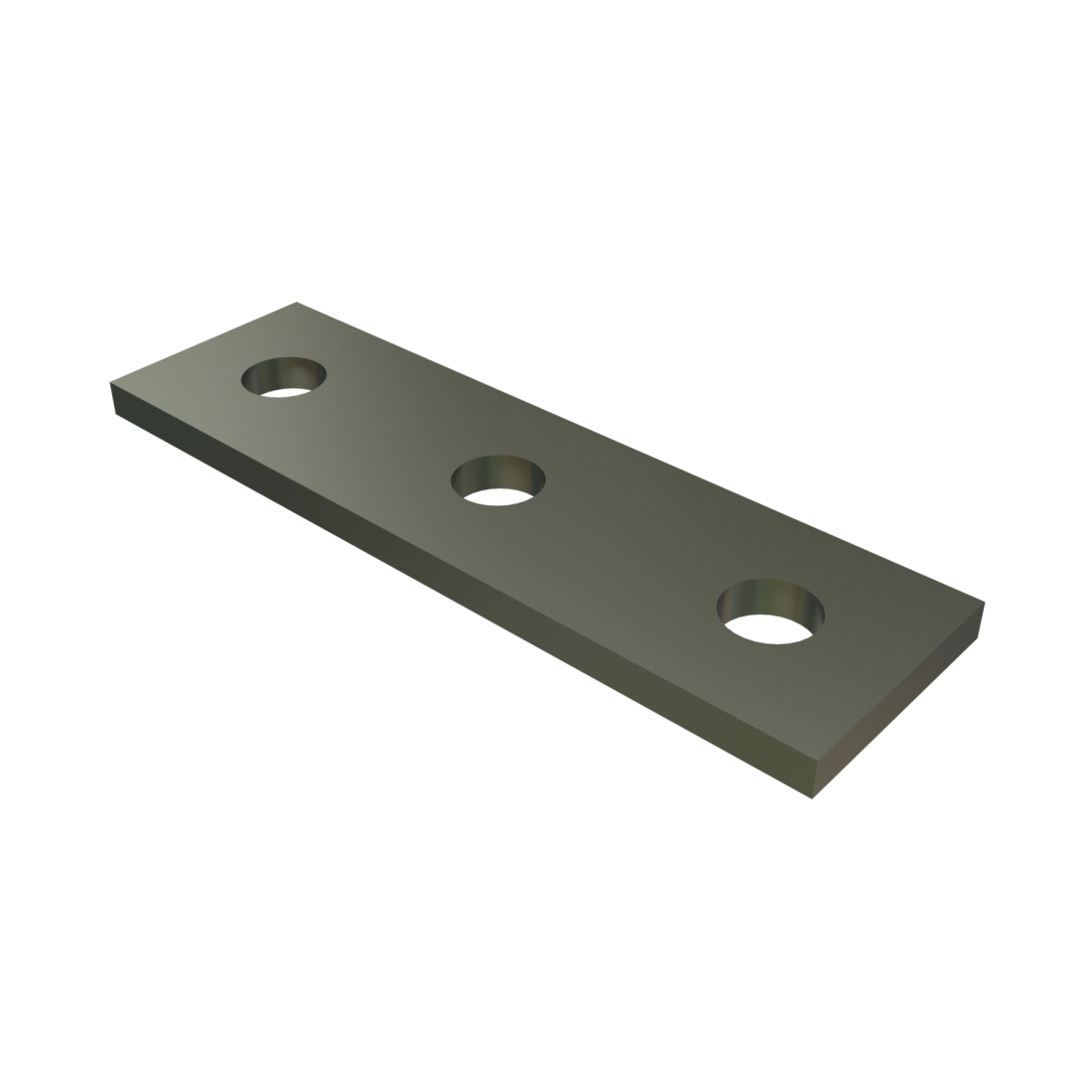

Unistrut – P1066 – 3 Hole, Flat Plate Fitting

The Unistrut P1066 is a robust and versatile 3-hole flat plate fitting designed to provide excellent stability and secure connections in various applications. Built with durability in mind, this fitting is engineered to withstand demanding conditions, ensuring long-lasting performance.

Specifically designed for compatibility with Unistrut channels, the P1066 offers an easy and efficient installation process. Whether you’re working in construction, industrial projects, or even tackling DIY endeavors, this flat plate fitting allows for secure attachment and support of fixtures, equipment, or structures.

Featuring three holes, this fitting offers enhanced flexibility and adaptability, allowing for precise positioning and customization. This makes the Unistrut P1066 suitable for a wide range of projects, from connecting multiple Unistrut channels to attaching additional accessories such as brackets, conduits, or pipes.

The Unistrut P1066 is engineered with load-bearing capabilities in mind, ensuring stability and reliability for your projects. Its robust design provides exceptional support and strength, giving you confidence in the integrity of your structures.

Whether you’re a professional contractor or an avid DIY practitioner, the Unistrut P1066 3-hole flat plate fitting is an excellent choice. With its durable construction, user-friendly installation, and versatility, it is a reliable component that will contribute to the creation of sturdy and secure installations.

n8zrhhopvwiw2a5fulb3

Other Unistrut Items

Unistrut – J1205 thru J1280 – J-Hanger (1-5/8″ Series)

Unistrut – P1100 – 1-5/8″ x 1-5/8″, 14 Gauge, Solid

Unistrut – P1000T – 1-5/8″ x 1-5/8″, 12 Gauge; Slotted

Unistrut – P1000SL – 1-5/8″ x 1-5/8″, 12 Gauge; Long Slots

Unistrut – P1000KO – 1-5/8″ x 1-5/8″, 12 Gauge; Knock Outs

Unistrut – P1000HS – 1-5/8″ x 1-5/8″, 12 Gauge; Round Holes

Description

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 1/2″ fasteners
  • Variety of material and finish options

General Specifications

Standard Dimensions (Unless Shown Otherwise on Drawing):

  • Hole Diameter:  9/16”  (14mm)
  • Hole Spacing (From End):  13/16”  (21mm)
  • Hole Spacing (On-Center):  1 7/8”  (48mm)
  • Width:  1 5/8”  (41mm)
  • Thickness:
  • 1/4”  (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
  • 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

  • When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.

Materials & Finishes

Materials & Finishes – Standard:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Plain (PL):  No finish

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS):  Conforms to ASTM A240 or A276, Type 304 *
  • Stainless Steel, Type 316 (ST):  Conforms to ASTM A240 or A276, Type 316 *
  • Aluminum (AL):  Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics.
