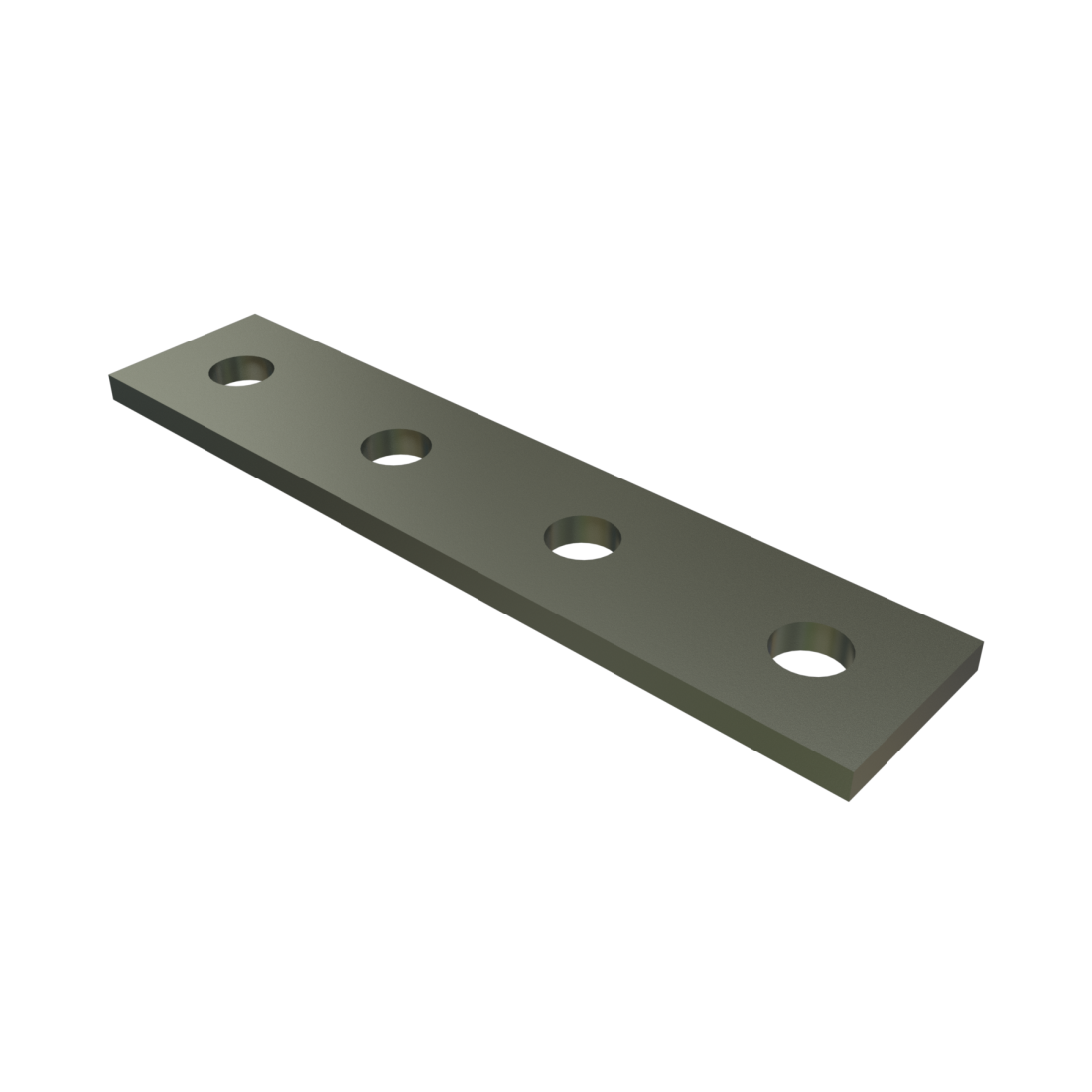

Unistrut – P1067 – 4 Hole, Flat Plate Fitting

atkore-unistrut

The Unistrut P1067 – 4 Hole, Flat Plate Fitting is a versatile structural component designed to provide solid support and enhance stability in a wide range of construction and industrial applications. This flat plate fitting features four conveniently placed holes, allowing for easy attachment to Unistrut channels or other compatible framing systems.

Crafted with high-quality materials, the Unistrut P1067 ensures durability and long-lasting performance even in demanding environments. Its sturdy construction enables it to withstand heavy loads and stress, making it suitable for a variety of project requirements.

This 4-hole flat plate fitting is easy to install and provides a secure connection, giving you peace of mind knowing that your structures are reliably anchored. Whether you’re working on building racks, shelves, or framework, the Unistrut P1067 is an excellent choice for reinforcing structures and creating efficient, functional spaces.

With its versatility, robustness, and compatibility with Unistrut channels, the P1067 – 4 Hole, Flat Plate Fitting offers a reliable solution that can handle a wide range of construction and industrial applications.

orupjbjkrvjisqkp5cfc

Features:

  • Steel: ASTM A1011 SS GR 33
  • Holes for 1/2″ fasteners
  • Variety of material and finish options

General Specifications

Standard Dimensions (Unless Shown Otherwise on Drawing):

  • Hole Diameter:  9/16”  (14mm)
  • Hole Spacing (From End):  13/16”  (21mm)
  • Hole Spacing (On-Center):  1 7/8”  (48mm)
  • Width:  1 5/8”  (41mm)
  • Thickness:
  • 1/4”  (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
  • 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

  • When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.

Materials & Finishes

Materials & Finishes – Standard:

  • Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1
  • Unistrut Defender (DF):  Conforms to ASTM A1059
  • Hot Dip Galvanized (HG):  Conforms to ASTM A123 or A153
  • Perma-Green (GR):  Conforms to commercial standards for powder coating
  • Perma-Gold (ZD):  Conforms to ASTM B633, Type II SC1 or SC3
  • Plain (PL):  No finish

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS):  Conforms to ASTM A240 or A276, Type 304 *
  • Stainless Steel, Type 316 (ST):  Conforms to ASTM A240 or A276, Type 316 *
  • Aluminum (AL):  Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics.
