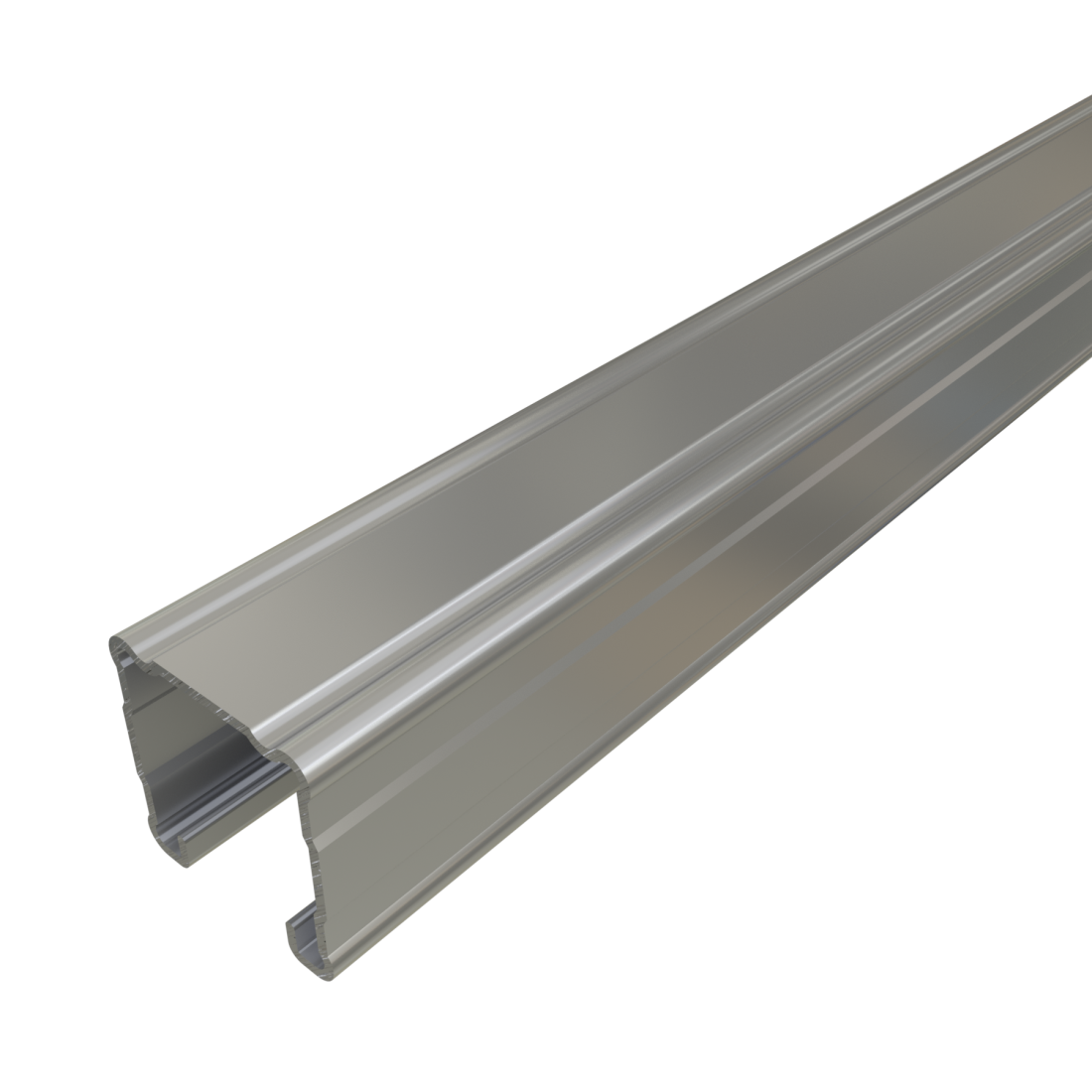

Unistrut – P1100 – 1-5/8″ x 1-5/8″, 14 Gauge, Solid

atkore-unistrut

Introducing the P1100 – 1-5/8″ x 1-5/8″, 14 Gauge Solid Steel Channel, the perfect solution for your heavy-duty support requirements. This solid steel channel is designed to provide exceptional strength and stability for a variety of construction projects.

Crafted from durable 14-gauge steel, this solid steel channel offers superior durability and resilience. It is built to withstand heavy loads and resist bending or warping, ensuring long-lasting performance in demanding environments.

With a size of 1-5/8″ x 1-5/8″, this solid steel channel provides ample space for securing and organizing cables, pipes, and other equipment. Its versatility makes it suitable for various applications, including framework construction, racking systems, and more.

The P1100 – 1-5/8″ x 1-5/8″, 14 Gauge Solid Steel Channel is designed to meet and exceed industry standards. Its corrosion-resistant coating protects against rust and ensures reliability even in harsh conditions.

Whether you’re working on a residential, commercial, or industrial project, trust the P1100 – 1-5/8″ x 1-5/8″, 14 Gauge Solid Steel Channel to provide the sturdy and reliable support you need. Invest in this high-quality product today and experience its exceptional durability and performance for yourself.

nhmp98eu6j5ip3vnh5f7

Features:

14 Gauge Solid Strut Channel P1100 (solid) channel is our 14 gauge channel that is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing.
  • UL and CSA listed
  • Light gauge
  • Product dimensions are 1 5/8″ wide x 1 5/8″ tall x 14 ga. thick, solid
  • Punched holes are also available for ease of installation
  • Our P1100 is available in the following finishes: Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA).
  • Made in the USA

General Specifications

Standard Lengths:

  • 10 feet:  10′ or 10’ 1/8” (3.05m) ± 1/8” (3 mm)
  • 20 feet:  20′ or 20’ 3/8” (6.11m) ± 1/8” (3 mm)

Special Lengths:

  • Available with a tolerance of ±1/8” (3 mm).

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for “UNISTRUT” on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.

Materials & Finishes

Materials & Finishes – Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33

Materials & Finishes – Special Metals:

  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics.
