ANRIN KE-150s Reinforced Edge Channel with Stainless-Steel Edge Rail


A technically advanced channel system with many details for efficient line drainage, both in private residential buildings and in commercial and urban development. The name is derived from the steel or stainless steel frames integrated into the channel profile. They serve to protect the channel flank from damage and wear and tear and to stabilise the cover gratings. Particularly high loads in traffic areas, such as those found in freight forwarding yards and on public roads, are accommodated by this dimensionally stable and weather-resistant frame.  For variable laying of the channel runs, different channel types can be combined within the system. For example, channels with preformed shapes for T-connections, corner joints and cross joints or channels with a cast-in vertical pipe socket for connection to a drainage system are available.

Product Benefits:

  • 6 mm Thick Steel Profile Frame
  • Corrosion Resistant and Easy to Maintain Closure Technology
  • UNILINK Joint on Both Sides for Installation Regardless of Direction

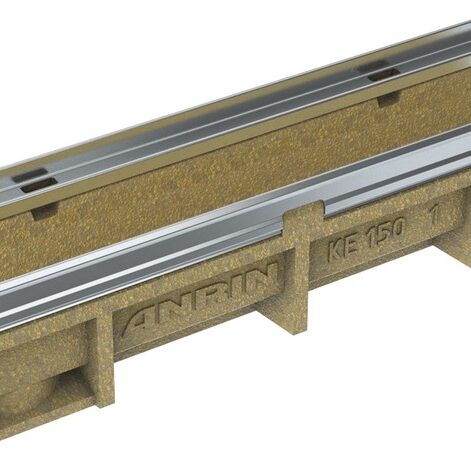

ke_150.jpg__800x0_q90_subsampling-2 150s

KE-150S Reinforce Edge Channel Product Specifications

Material: Polymer Concreate

Length: 1000 mm

Width: 214 mm

Height: 220-320 mm

Nominal Width: 150mm [5.91 in]

Load Capacity: C250 to E600

Joint Formation: UNILINK®– Joint

Clasp: SnapLock Fastening

Grating: Galvanized Steel, Stainless Steel, Ductile Iron, Iron Age Designs Patterned Profiles, Custom Grates Available Upon Request
