A high-tech channel system with all the details for efficient line drainage in private residential construction as well as in commercial construction and urban development. The name comes from the stainless steel frames integrated into the channel profile. They protect the edge of the channel from damage and wear while also providing stability for the cover grating. This dimensionally stable and weather-proof frame can withstand the particularly high loads in traffic areas, as can occur in depots and on public roads. For variable installation of the channel elements, different types of channels can be combined within the same system. For example, channels with premoulded indents for T, corner and cross connections, or channels with an integrated vertical pipe socket to connect to a drainage system are available.
Product Benefits:

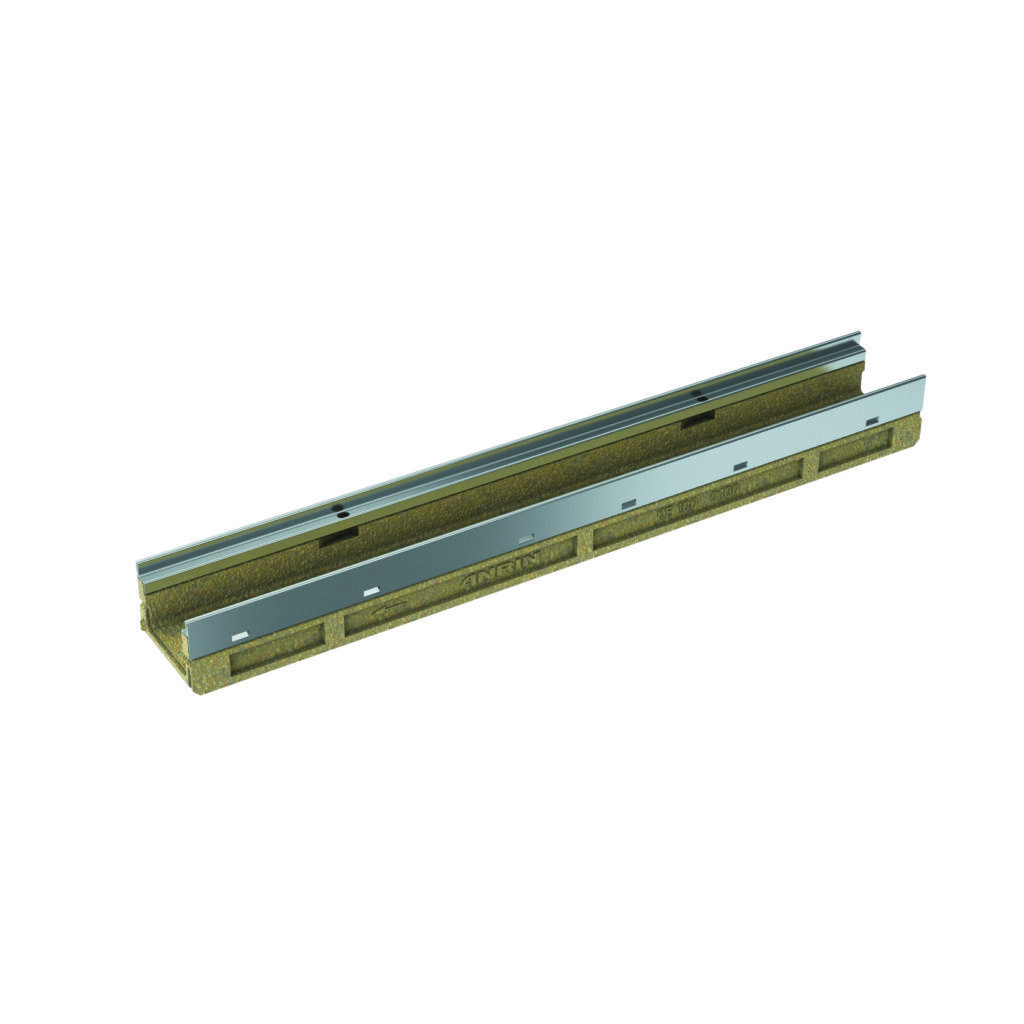

KE-100-080S Reinforce Edge Channel Product Specifications
Material: Polymer Concreate
Length: 1000mm [39.37in]
Width: 136mm [5.35in]
Height: 80mm [3.15in]
Weight: 29.32lbs
Nominal Width: 100mm [3.94in]
Joint Formation: UNILINK®– Joint
Clasp: TwistLock fastening
Load Capacity: A15 to E600
Grating: Longitudinal ADA HP Stainless-Steel, Slotted Stainless-Steel, Perforated Stainless-Steel, Polyamide Plastic, Iron Age Patterned Profiles, Custom grates available upon request
